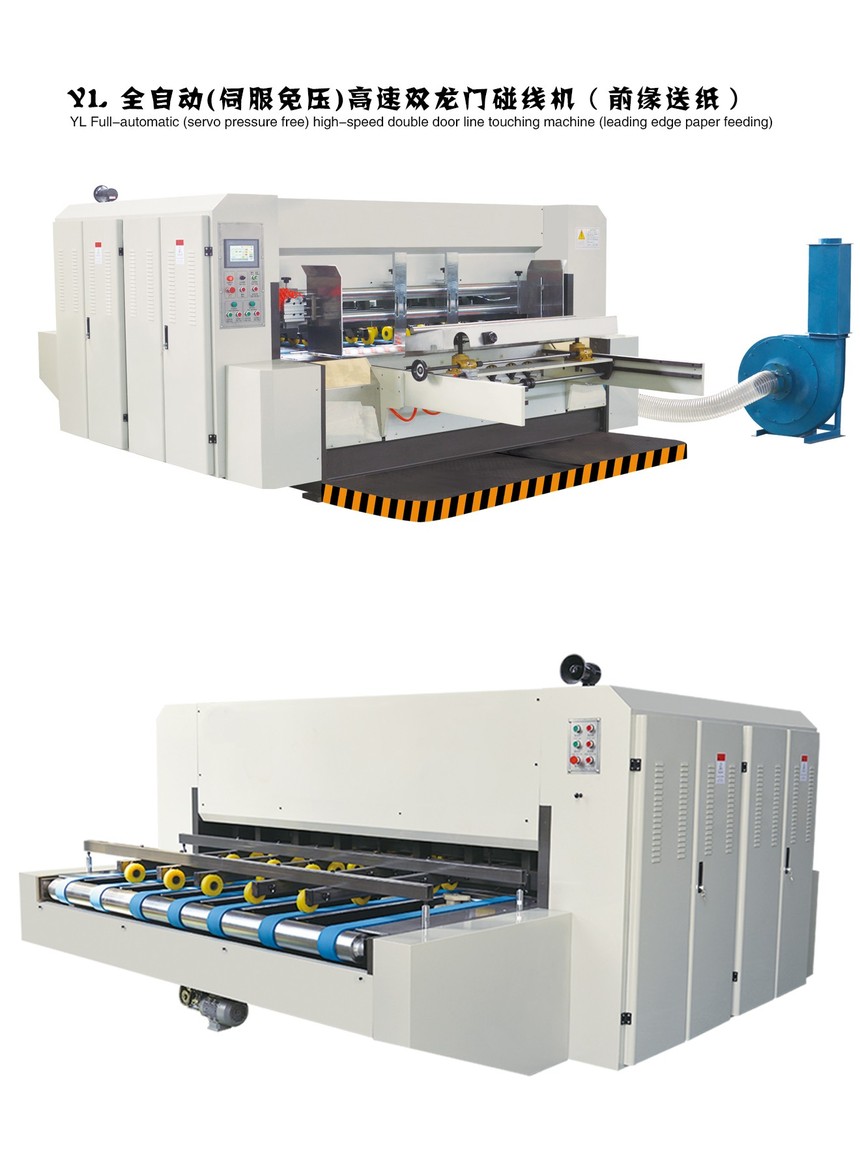

YL 全自动(伺服免压)高速双龙门碰线机（前缘送纸）

性能特点：

◆本机结构是传统碰线机与现代科技的结合。

◆轻压前缘送纸机构超越送纸结构对纸箱的抗压损失接近零，*大化的解决了用户后顾之忧。

◆既保证了速度，又避免了纸箱大小盖和偏斜盖。

◆PLC(电脑)控制排单尺寸(可存订单)，电动调整精度误差±0.5mm。

◆保证每张纸板尺寸精度误差小于±0.5mm。

◆本机设有隔张送纸，*大化纸板加工范围。

◆双龙门碰刀高强度设计保证较高强度的纸板压痕深浅均匀，成箱美观。

◆本机设计结构合理，维修方便，皮实耐用，操作简单，对职员素质要求宽松。

◆高硬度材质40crmo齿轮精工制作，精度高寿命长。

◆齿轮箱均采用全齿轮传动自动喷淋滴油润滑，无键连接。

◆整机轴承均采用精品哈瓦洛轴承，全套电器采用正泰公司产品。

◆该机人机界面清晰、操作简单、容易。

◆本机配有开车预警和归零预警装置，使该设备的前后操作人员得到保障。

Performance characteristics：

The structure of this machine is the combination of traditional thread touching machine and modern science and technology.

The pressure loss of the light pressure leading edge paper feeding mechanism is close to zero when it surpasses the paper feeding structure.

It not only ensures the speed, but also avoids the large and small covers and slanting covers of the carton.

The PLC (computer) controls the size of the order (order can be stored), and the electric adjustment accuracy error is ± 0.5mm.

Ensure that the dimensional accuracy error of each paperboard is less than ± 0.5mm.

This machine is equipped with separate sheet feeding, * large paperboard processing range.

High strength design of double dragon door touch knife ensures that the indentation depth of high strength paperboard is even and the carton is beautiful.

This machine has reasonable design structure, convenient maintenance, durable leather, simple operation and loose requirements for staff quality.

High hardness 40CrMo gear precision production, high precision and long life.

All gearboxes adopt full gear transmission, automatic spray and oil dripping lubrication, and no key connection.

The bearings of the whole machine are made of high-quality havalo bearings, and the whole set of electrical appliances are made of Chint products.

The machine has clear man-machine interface, simple operation and easy operation.

This machine is equipped with start-up warning and return to zero warning devices, so that the front and rear operators of the equipment can be guaranteed.
